The engine is back in place and clutch adjusted and the car seems to drive much better now as well.
Next task is resolving some of the residual electrical problems. Something that I thought was a problem just turned out to be a difference in wiring between the early cars and those from slightly later. I noticed that when I put on the side lights for the car that the lower left green light on the indicator cluster\fuel gauge came on. As this indicator light is wired to the fog lamps on my 65 I thought there was a fault in the wiring; once I had consulted the wiring diagram it became clear that this is how it is supposed to work and that the function of the lower left green indicator lamp changed at some stage from showing side lamps switched on to showing fog lights on.

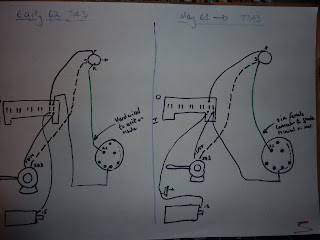

With that sorted I am tackling issues with the indicator wiring and relays. Again the 62 cars wiring differs and uses a flasher relay with 3 terminals (S,K, +) rather than subsequent ones that use only 2 (S,+). So far I have amassed a range of dodgy early style 3 terminal versions, none of which work to my total satisfaction. As I have a number of 2 terminal ones I thought I would change to this later system. From looking at the wiring diagrams it looks achievable which just a couple of wires to swap around. Here is a quick sketch of the 2 systems.
